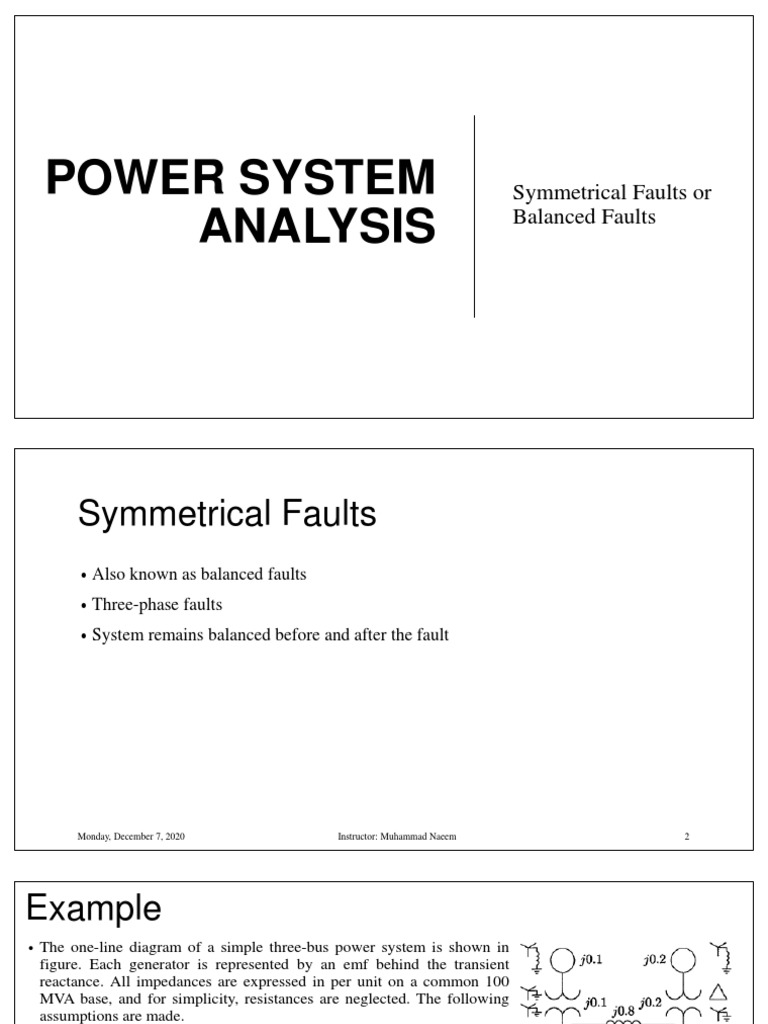

POWER SYSTEM Symmetrical Faults or

ANALYSIS Balanced Faults


Symmetrical Faults
• Also known as balanced faults
• Three-phase faults
• System remains balanced before and after the fault

Monday, December 7, 2020 Instructor: Muhammad Naeem 2


Example
• The one-line diagram of a simple three-bus power system is shown in
figure. Each generator is represented by an emf behind the transient
reactance. All impedances are expressed in per unit on a common 100
MVA base, and for simplicity, resistances are neglected. The following
assumptions are made.
• Shunt capacitances are neglected, and the system is considered on no-
load.
• All generators are running at their rated voltage and rated frequency with
their emfs in phase.
• Determine the fault current, the bus voltages, and the line currents during
the fault when a balanced three-phase fault with a fault impedance 𝑍𝑓 =
0.16 per unit occurs on
a) Bus 3
b) Bus 2
c) Bus 1
Monday, December 7, 2020 Instructor: Muhammad Naeem 3
Example
• Repeat the previous problem using 𝑍𝑏𝑢𝑠
𝑗0.16 𝑗0.08 𝑗0.12
𝑍𝑏𝑢𝑠 = 𝑗0.08 𝑗0.24 𝑗0.16
𝑗0.12 𝑗0.16 𝑗0.34

Monday, December 7, 2020 Instructor: Muhammad Naeem 4
